Brand:
SEDItem NO.:
SED-HBK-300WOrder(MOQ):
1 PCSPayment:
TT,West Union,PaypalProduct Origin:
ChinaColor:
Black/Can Custom made ColorShipping Port:
ShenzhenLead Time:
5-15 days after paymentSED As a 15+ Years Experience China led light fixture manufacturers provide Kinds of high quality Led High Bay Light with diffierent housing.
OEM &ODM kinds of led high bay light, from 50W to 1500W Specially for you.We will print your logo on the lights.
170lm/w with 7 Years Warranty.Orignal Epistar, Bridgelux, Philips, Osram, Nicha, CREE LED chip.
Meanwell or other high quality drivers for your reference.Welcome to contact us get Best Quotation.
Specifications:
Model: | SED-HBK-300W |
Lumens Per Watt: | 170lm/w |
Wattage: | 300w |
Voltage: | AC90-305V |
Frequency: | 50-60 hz |
Power Factor: | >0.90 |
Color Temperature: | 2700~6500K |
Led Chip: | 360 PCS Philips SMD2835 |
Life Time: | >50,000 hours |
Dimmable | 0-10V or Phase Cut or DaLi Optional |
CRI: | >80 |
Beam Angle: | 60°/90°/120° |
Storage Temp: | –30 ~ 55°C |
IP Rating: | IP65 |
Dimmable: | 0-10V or Phase Cut | Da Li Optional |
Housing: | Finish/Aluminum die-cast housing |
Mounting: | Hook / Eye Mount (Standard), pendant mount ,surface mount |
Product Size: | φ420*220mm |
Net Weight: | 5.05KG |
Packaging Size: | 480*480*230mm |
Quantity/Carton: | 1PCS/Carton |
Net Weight: | 4.5KG |
Warranty: | 5 years or 7 years |
Driver: | Mean Well Or CE Driver Optional |
Features:
Pure aluminum with good heat dissipation
60°/90°/120° Angle Option
IP65 waterproof, 7 years warranty
Anti Glare Function
The packaging structure achieves the advantages of low light attenuation, high light efficiency, energy saving and environmental protection;
Ensure the service life of the lamps;
The crystal lens is used for light distribution to meet the lighting needs of different occasions;
The lamp adopts an angle locking device to ensure that the long-term working angle will not change in a vibration environment;

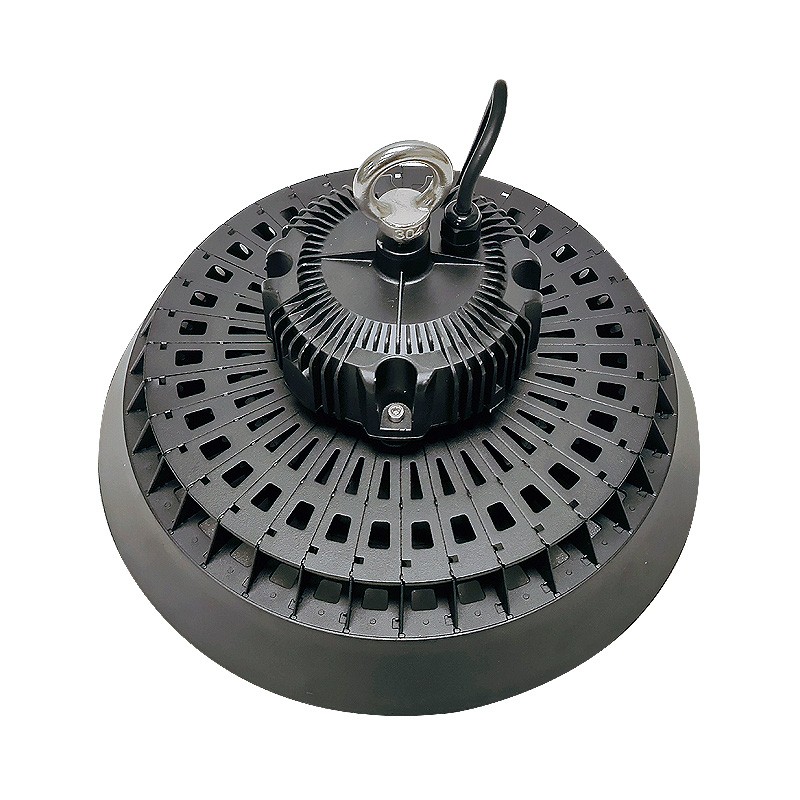

HBK UFO Led High Bay Light Housing Detail:

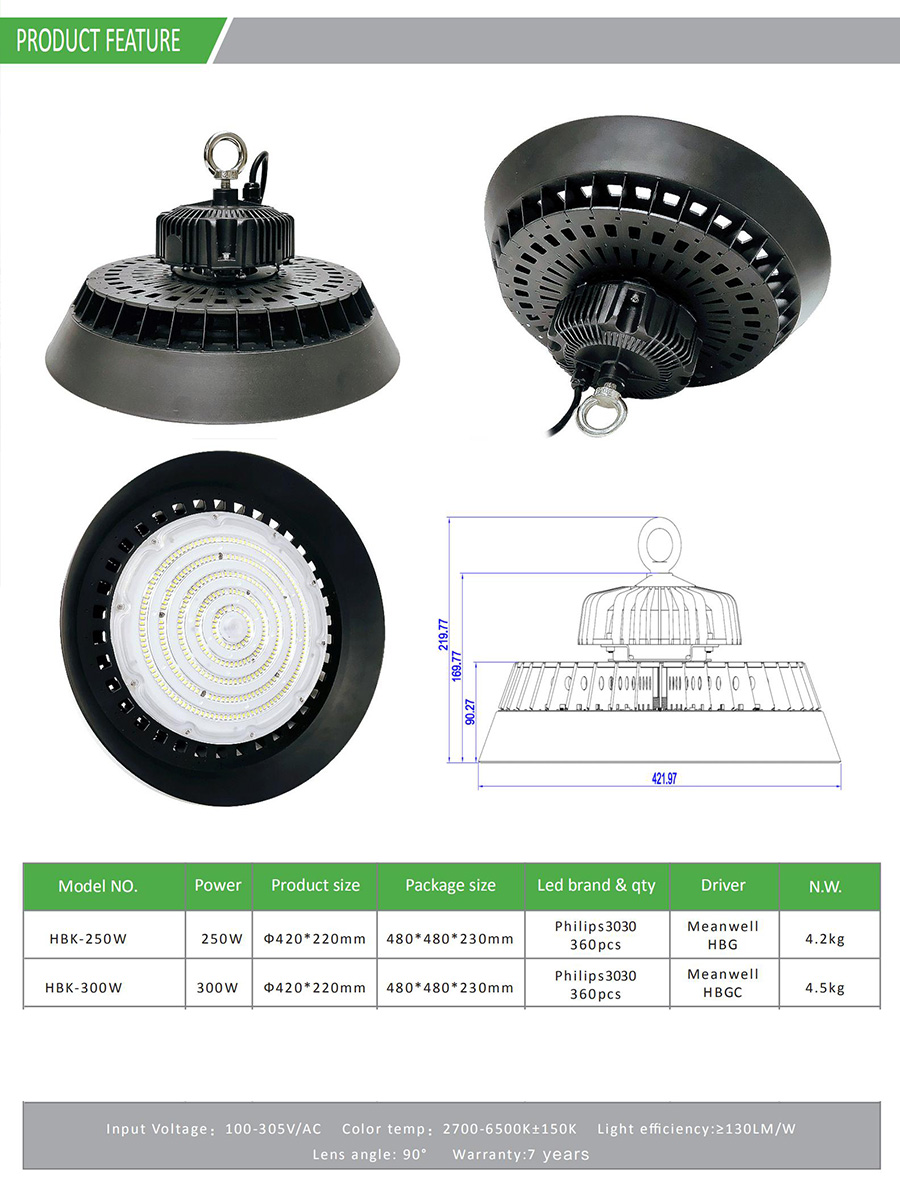

HBK UFO Led High Bay Light Specification:
UFO LED High Bay Light Common Application:
1. Replace traditional high pressure sodium lamp or metal halide lamp.
2.The High Bay LED Lighting is best suited for warehouses, workshop, garage, supermarket, shop, gymnasiums, shopping mall, toll station, exhibition halls, sports hall, stadium, mining, railway station,restaurant,retail spaces and any other industrial or commercial facility with high ceilings.
